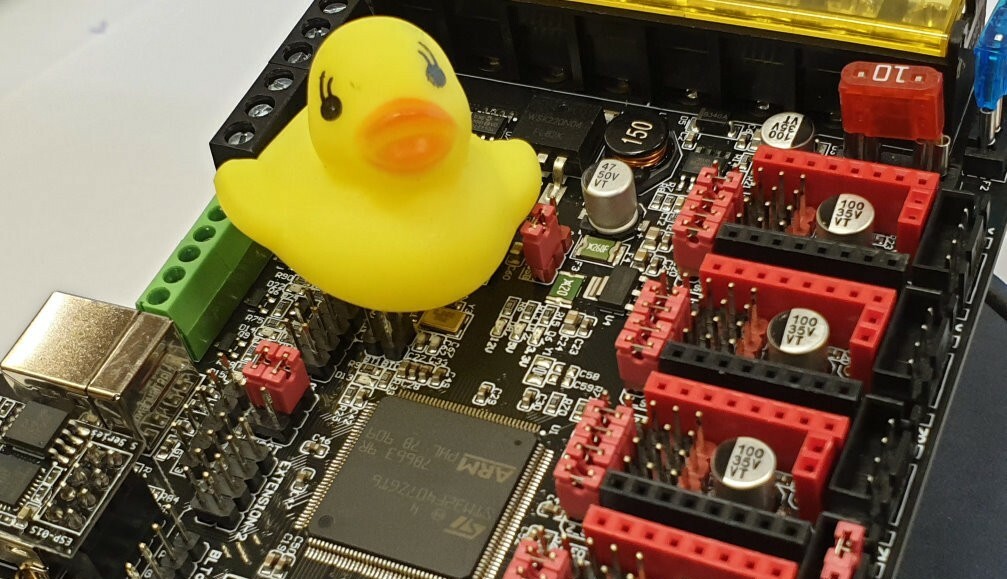

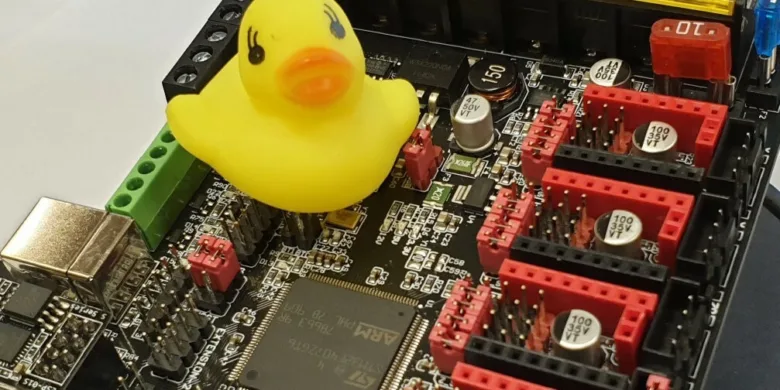

The SKR PRO 1.1 has arrived! High-End 32 bit board

The long-awaited PRO version of the popular SKR 1.3 board I used on my AM8 upgrade has arrived. The SKR PRO 1.1 is the high-end offering from Bigtreetech and it should be more than capable of running my Hypercube Evolution printer.

SKR PRO 1.1 Full package
SKR PRO 1.1 – Full package

The SKR PRO 1.1 board uses an ARM 32-bit Cortex M4 CPU (the STM32F407ZGT6) supporting 6 stepper motor drivers. Power can be supplied independently trough the board, allowing the use of 24V and 12V at the same time.
The main differences between the SKR boards from Bigtreetech can be seen here:

chrome 2019 07 15 14 55 43
SKR 1.3 vs SKR PRO 1.1

Motors will be powered by the TMC2209 drivers that are yet to be delivered. The mentioned drivers support higher current of up to 2.8A peak, StallGuard and CoolStep making the TMC2209 the go-to drivers for a high-performance 3D Printer.
The stepper drivers can be controlled directly through UART protocol without the need of extra wiring.

New articles will follow on how to compile and configure Marlin 2.0 for the SKR PRO 1.1, and how I used it in the Hypercube Evolution build.

Liked it? Take a second to support 3DPrintBeginner on Patreon!
become a patron button

You may also like...

2 Responses

  1. Matthew Barlow says:

    I would love to see how you configure your Marlin 2.0 with this board and the Hypercube Evolution. This is exactly what I’m building. Although, I’m using the TMC2130 in SPI mode and having absolutely no luck getting it working.
