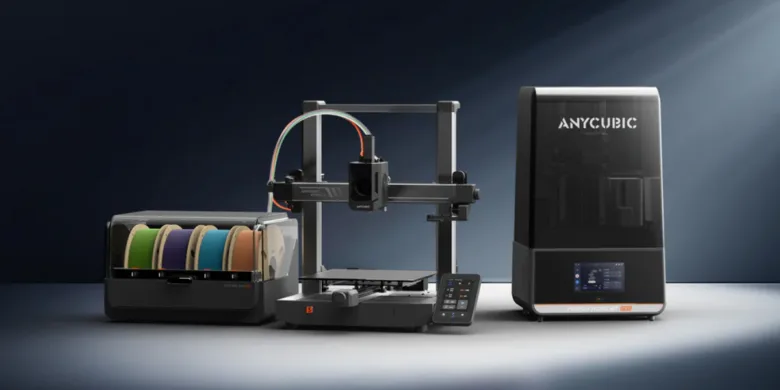

The Anycubic Kobra 3 Combo & Photon Mono M7 Pro are coming!
Anycubic launches the Anycubic Kobra 3 Combo printer which is the first 3D printer from their lineup that introduces multi-color 3D printing, and also introduces the Photon Mono M7 Pro which is a well-equipped resin 3D printer with features like resin heating, resin-auto fill and a 14K screen.
Anycubic Kobra 3 Combo
Smart Multi-Color Printing
The multi-color 3D printing capability of the Anycubic Kobra 3 Combo is given by the introduction of the Anycubic Ace Pro system which is a multi-filament unit connected to the Kobra 3 printer. It allows for up to 4 spools of filament to be used in the system.
Dries while it Prints
The Anycubic Ace Pro 3 also provides filament drying capabilities besides the multi-color function. The addition of a filament drier in the same unit is welcomed, as it will eliminate the need to purchase a dedicated filament drier. Having a filament drier is important if you live in a humid environment, improving print quality.
Pantone Color Institute
Anycubic partnered with Pantone Color Institute to bring multi-color capabilities to the Anycubic Kobra 3 Pro.
Faster Speed up to 600mm/s
When it comes to speed, the Kobra 3 is advertised to reach up to 600mm/s during printing, which is in line with other new 3D printers launched in the last couple of years.
Expansive Printing Space up to 250x250x260mm
The printing volume of the Kobra 3 is 250x250x260mm which is a generous size allowing for large multi-color prints.
Print Smooth and Easy
With the Anycubic Kobra 3, you can expect printing fast, smooth and easy.
| Body | Build volume(W*D*H) | 250*250*260mm (W*D*H) |
| Machine case | i3 gantry, injection molded base + aluminum profile | |
| X-axis | Twin Spools | |
| Y-axis | Twin spools | |
| Speed | Maximum print speed | 600mm/s |
| Max acceleration of printhead | 20000mm/s | |
| Printhead | Hot end | All metal |
| Extruder gear | Hardened steel | |
| Nozzle | Brass | |
| Max hot end temperature | 300℃ | |
| Nozzle diameter (standard) | 0.4mm | |
| Nozzle diameter (optional) | 0.2mm,0.6mm,0.8mm | |
| Tool head cutter | Internally installed | |
| Supported consumables diameter | 1.75mm | |
| Hotbed | Max build plate temperature | 110 ℃ |
| Cooling and Filtration | Motherboard fan | √ |
| Model cooling fans | √ | |
| Hot end fans | √ | |
| Supported Filament | PLA, PETG, ABS, ASA, PET, PA, PC, PP,HIPS | |
| Sensors | Vibration suppression | √ |
| Flow control | √ | |
| Automatic hot bed leveling | √ | |
| Z-axis free compensation | √ | |
| Chamber monitoring camera | Optional: Smooth Play Camera, 480P | |
| AI detection | √ | |
| Filament run out sensor | √ | |
| Power loss recover | √ | |
| Filament tangle sensor | √ with ACE Pro | |
| Electric Equipment | LED lights | √ |
| Display | 4.3-inch touch screen | |
| Communication | Wi-Fi, AC Cloud | |
| Storage | USB flash drive | |
| Operator interface | Touch screen, APP, PC | |
| Lan mode | √ | |
| Multi-color printing | Standard four colors, extended support eight colors |
Anycubic Photon Mono M7 Pro
130mm/h for Even Standard Resins
The Anycubic Photon Mono M7 Pro can reach speeds of up to 130mm/h for standard prints and up to 170mm/h for High-speed printing at 0.1mm layer height, being one of the fastest resin printers on the market.
14K High-Precision Optical System
The 10.1”, 14K (13320 * 5120) High-Precision Optical System allows for the prints to be fast, and also highly detailed to ensure the best print results.
Auto-Adaptive Technology Control Heating
The Auto-Adaptive Technology Control Heating provides automation for the heating of the vat and resin, eliminating the hassle of dealing with settings, making the process of printing with resin much easier and consistent.
Auto Resin Refill, Withdrawal
With the use of an automated resin fill unit, the printer will automatically fill the vat with new resin when needed, and it will also help unload the resin from the vat after the print is completed.
Intelligent Workflow-Assist Printing
For hassle-free operation, features like Platform installation detection, residue detection and failed printing detection further improve the printing experience.
| Build Volume | 6.5L |
| Printing Volume | 223*126*230mm |
| Printing Speed | Max Speed 130mm/hr, 0.1mm Layer With Standand Resin Max Speed 170mm/hr, 0.1mm Layer With High Speed Resin Max Speed190mm/h , 0.15mm Layer With High-Speed Resin Max Speed 220mm/h , 0.2mm Layer With High-Speed Resin |
| Machine Leveling | Leveling-free |
| LCD Screen Size | 10.1″ 14K (13320*5120) |
| Light Source | LighTurbo 3.0 (COB+Fresnel Lens) |
| Light Intensity | 5500±10%μW/cm² |
| X/Y（um） | 16.8 /24.8 |
| Build Platform | Laser-carved Plate |
| Operating Screen | 5″ IPS Touch-control |
| Slicing Software | Anycubic Slicing, CHITU, Tango (CHITU and Tango can be supported around the end of May) |
| Material | Compatible with kinds of resin (high speed, water-washable, standard, ABS-like, plant-based, etc.) |
| Power Supply | 350W |
| Connection Method | WiFi, USB |
| Machine Weight | 12.8KG |
| Machine Dimensions | 312*315*520mm |
| Package Dimensions | 620*395*395mm |
Where to buy?
The Anycubic Kobra 3 Combo is available to order from the Anycubic Website between May 07 – May 30 with an Early Bird price of $419 and FREE $89 Gifts (1*Pantone PLA + 3000 units exclusive camera + 5000pcs Limited Mystery Box).
The Anycubic Photon Mono M7 Pro is available to order from the Anycubic Website between May 07 – May 09 with an Early Bird price of $469 and FREE $99 Gifts (1*High Speed Resin+2FEP Film+3000pcs Limited Mystery Box).
Use code 3DBEGIN to get a $30 discount for purchases over $300 on all products, available between 2024.05.07 – 2024.06.30.
