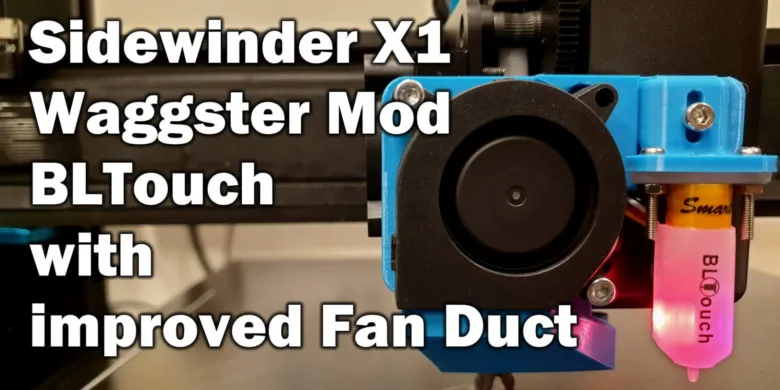

Sidewinder X1 Waggster Mod BLTouch improved Fan Duct

The Sidewinder X1 has a basic fan duct that works well, but the cooling is done only from one side. I wanted to improve this and because i am using a BLTouch with the Waggster Mod, there were limited options i could choose.

So, the improved Fan Duct was born.

mount 1 | Sidewinder X1 Waggster Mod BLTouch improved Fan Ductmount 2 | Sidewinder X1 Waggster Mod BLTouch improved Fan Ductmount 3 | Sidewinder X1 Waggster Mod BLTouch improved Fan Duct
Sidewinder X1 Waggster Mod BLTouch with improved Fan Ductmount 5 | Sidewinder X1 Waggster Mod BLTouch improved Fan Ductmount 6 | Sidewinder X1 Waggster Mod BLTouch improved Fan Duct
There is no need for extra hardware, apart from what you need to install the Waggster Mod.

After installing the improved fan duct, part cooling works better and cooling is done from 180 degrees.

The improved fan duct can be downloaded from Thingiverse.

Enjoy
